Available Finish:
| Satin | Glossy | Comb. |
|---|---|---|

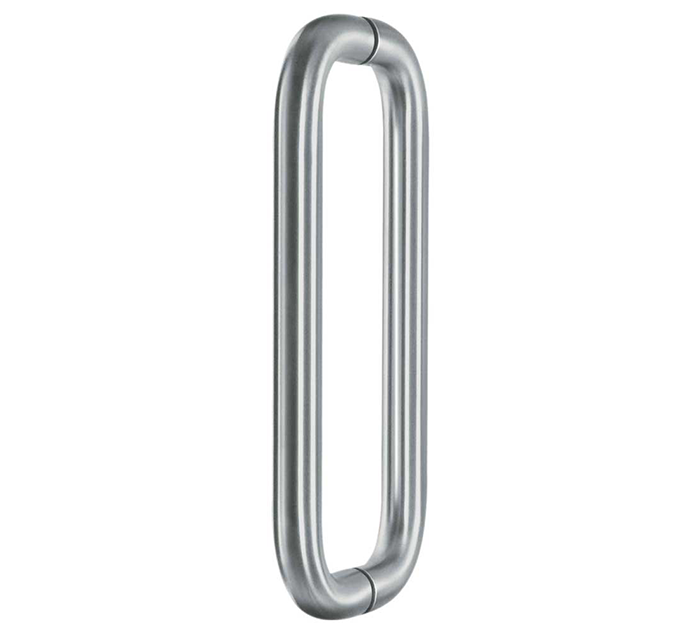

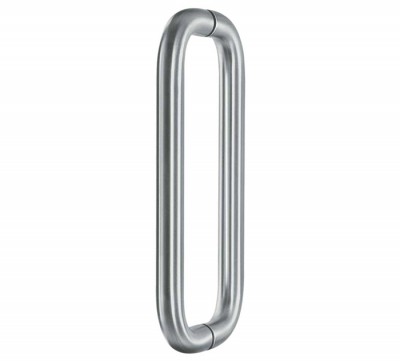

Description:
AISI Corrosion Resistance S.S. 316 Grade Material
BSEN Certified & Fire Rated Product
| Code : PH |
| Registered Design Ø : 1 Size : A to B Ø : 2 Size : A to D Ø : 3 Size : B to E Ø : 4 Size : B to H Ø : 5 Size : 400 to 2400mm Ø : 6 Size : 600 to 2400mm |
| A B C D E F G H | 1-16mm 2-19mm 3-22mm | 4-25mm 5-32mm 6-38mm | |||||||
| 150 mm | 200 mm | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 600 mm | ||

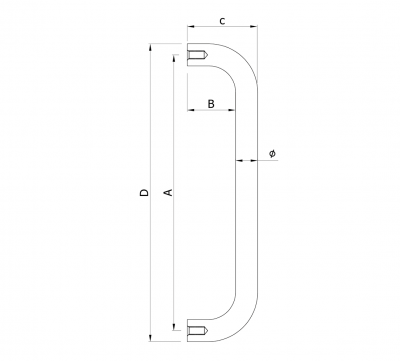

| Dim/Code | PH16 | PH19 | PH22 | PH25 | PH32 | PH38 |
| Ø | 16 | 19 | 22 | 25 | 32 | 38 |
| A | 150 | 150 | 150 | 200 | 400 | 600 |
| B | 35 | 43 | 44 | 47 | 73 | 69 |
| C | 51 | 62 | 66 | 72 | 105 | 107 |
| D | 166 | 169 | 172 | 225 | 432 | 638 |
| E | - | - | - | - | - | - |
